Best Automatic Top-Off (ATO) Systems for Reef Tanks (2026)

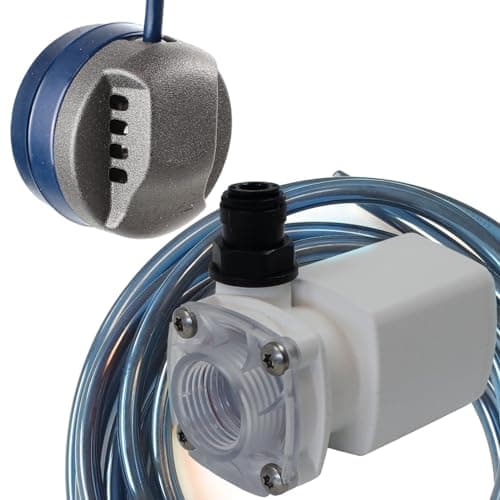

The Tunze Osmolator 3 is the auto top-off we'd reach for first on most reef and marine tanks. The reason is the part you hope never has to work: redundancy. Tunze's own documentation rates the optical control sensor to 0.5mm accuracy and pairs it with an independent thermal safety sensor that stops the Turbelle High Jet 5030 pump on overfill, which Tunze describes as 100% overflow protection. For a device whose whole job is to add water unattended, two independent paths to shutoff is what the Osmolator 3 is built around.

The optical eye is the headline. Because it has no moving parts, reviewers consistently treat it as less prone to the sticking and fouling that plague float-only designs. On the Osmolator 3, Tunze's own page pairs that optical control sensor with an independent thermal safety sensor as the backup path. That two-tier arrangement — accurate primary, independent backup — is the design pattern the rest of this guide is measured against.

What the spec sheet does not tell you: the Osmolator's value is in what it prevents, not what it does daily. The pump is small and the volume it moves is tiny; flow rate is almost irrelevant for an ATO. The 6.2 m delivery height matters more, because it lets you hide a reservoir in a cabinet well below the tank. The run-dry and blockage protection means a near-empty reservoir or a kinked line shuts the pump down rather than burning it out.

The honest trade-offs are price and a busier sensor cluster than a bare conductivity probe. This is a premium ATO, and the optical sensor needs the occasional wipe to stay accurate. For most reefers, redundant safety is worth the cost.

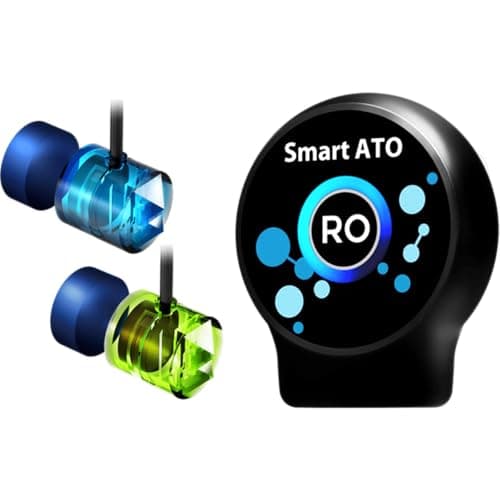

The AutoAqua Smart ATO RO solves a different problem from the Tunze, and the AutoAqua earns its rank on that difference alone. Instead of pumping from a top-off jug, the Smart ATO RO controls your reverse-osmosis system directly: when the level falls to the low-level sensor, AutoAqua's documentation says it opens the solenoid and lets the RO unit refill the reservoir up to the high-level sensor. That makes it the pick for RO-fed and higher-volume setups where refilling a jug by hand is the chore you are trying to eliminate.

The safety story is layered. The Smart ATO RO ships with two precise level sensors plus a float-ball switch, which AutoAqua positions as protection against accidental floods, and the QST timer adds real-time failsafe protection with both audible and LED alarms. A second practical benefit is water quality: by topping the reservoir straight from RO, Bulk Reef Supply notes the system helps you avoid TDS creep, so stored top-off water stays fresh rather than sitting and climbing in dissolved solids.

What the spec sheet does not tell you: this is more plumbing than a standard ATO. You are tying the controller into an RO line and a solenoid rated 0.02-0.7 MPa, so you need adequate RO pressure and a sensible reservoir. The payoff is a near-hands-off loop — the RO refills the reservoir, the reservoir tops off the tank.

The honest trade-offs: the RO-integrated design is overkill if you do not run RO on demand, and the float-ball plus dual-sensor cluster is more to install and keep clean than a single probe. For an RO-equipped reef room, that complexity buys real convenience.

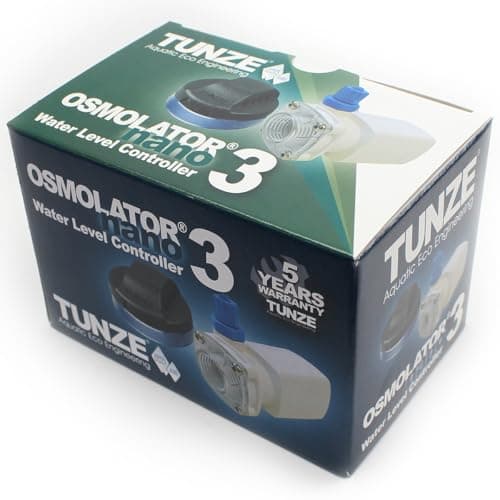

The Tunze Osmolator 3 Nano is the small-tank answer in the lineup, and the Osmolator 3 Nano keeps the safety architecture that makes the family worth buying. It carries the same 0.5mm-rated optical sensor and the same run-dry-protected Turbelle High Jet 5030 pump as the full-size Osmolator 3, but the controller and dosing are scaled for aquarium systems up to about 250 liters, which Tunze lists as roughly 66 US gallons. For a nano or small reef tank, that scaling is the point — a full-size ATO can dump too much water per cycle into a small volume, where evaporation swings salinity faster.

The Nano keeps the features that make the line worth buying. The optical eye is the same accurate, no-moving-parts primary sensor, and the pump's dry-running and blockage protection still guards against an empty reservoir or a kinked line. Two selectable maximum dosing-duration levels let you cap how long the pump can run on a single call, a sensible safety limit on a small tank. The magnet mount holds on panes up to 12 mm, which suits the thinner glass or acrylic of most nano builds, as SaltwaterAquarium.com's listing notes.

What the spec sheet does not tell you: the Nano's safety model leans more on the dosing-duration cap and run-dry protection than on a separate float backup, so for a nano the smart move is to pair it with a small reservoir. If a stuck pump can only ever add a cup of water, an overfill is an annoyance rather than a flood.

The honest trade-offs: it is sized strictly for small tanks, so it is the wrong buy for anything approaching its 66-gallon ceiling, and the optical sensor still needs occasional cleaning. Within its lane, it brings premium Tunze accuracy to nano keepers.

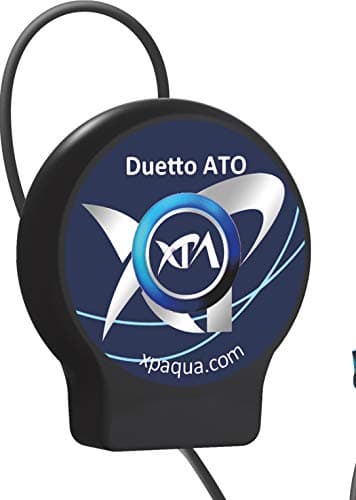

The XP Aqua Duetto is the value pick, and it earns the slot on safety architecture rather than price alone. Bulk Reef Supply's product documentation describes XP Aqua's proprietary dual-optical sensor as packing two precise level sensors into one small package, with the two sensors working in concert with intelligent QST programming to help prevent overfilling. In other words, the dual-sensor Duetto bakes redundancy into a single compact unit — two layers of overfill protection from a secondary optical sensor backup — which is exactly the design pattern the premium picks use, at roughly half the cost of the Tunze.

For the build, the spec list is honest and complete. The Duetto ships as a complete ATO kit: the dual-optical sensor, a controller, and a 74 gph dosing pump with an 8.2 ft maximum head, all mounted via a magnetic coupling that XP Aqua says installs in seconds. That 74 gph figure is pump flow, not turnover; like every ATO, the Duetto moves very little water, and flow is not the point. The dual-optical sensor is.

What the spec sheet does not tell you: the Duetto's redundancy is two optical sensors rather than an optical-plus-mechanical-float pairing, so both backup paths share the same failure mode if, say, salt creep fouls the optics. The mitigation is the same as for any ATO — keep the sensors clean and size the reservoir so a worst-case overfill is survivable.

The honest trade-offs: it is a single integrated unit with no separate mechanical float, and the controller is basic compared with the AutoAqua's. For a keeper who wants redundant optical safety without premium spend, it is the smart value buy.

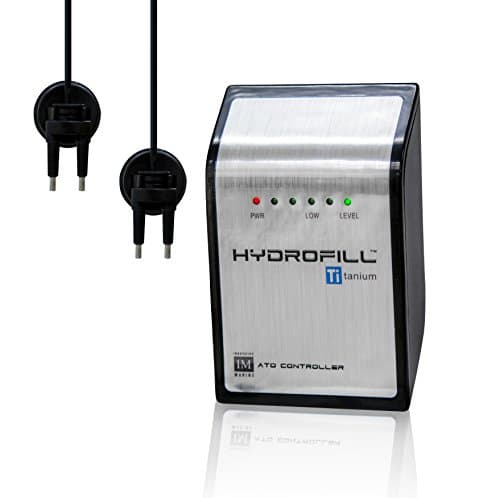

The Innovative Marine HydroFill Ti is the budget controller, and it takes a different technical route than the optical picks: conductivity sensing. Bulk Reef Supply's documentation explains that the controller uses your water's conductive properties to complete a low-voltage circuit and actuate a relay that runs the pump as water evaporates. It is a separate sensor-and-controller system rather than a complete kit, so you supply the pump and reservoir — which is part of why it is the cheapest entry here.

The HydroFill leans on titanium for durability. Two titanium electrodes are housed in each sensor for redundancy and consistent long-term performance in harsh marine environments, which addresses the corrosion that kills cheaper probes in saltwater. The other genuinely useful feature is its high and low set points: rather than a single trigger, you customize separate fill-start and fill-stop levels, which Innovative Marine says prevents the constant on/off cycling that single-sensor designs suffer. That hysteresis is easier on the pump and steadier on salinity.

What the spec sheet does not tell you: conductivity sensing depends on dissolved ions, so it is purpose-built for marine and works in fresh, but a probe coated in salt creep or biofilm can misread, and the HydroFill is a controller, not a foolproof flood-stop. There is no separate mechanical float in the base system, so the HydroFill Ti relies on clean probes and your reservoir sizing.

The honest trade-offs: you bring your own pump, the conductivity probes need cleaning, and the safety model is one sensor type with adjustable set points rather than two independent technologies. For a budget reef ATO where you already have a pump, it is a sturdy, sensible controller.
