Best Backyard Koi Pond Systems 2026: Pumps, Pressure Filters & UV That Keep Water Clear

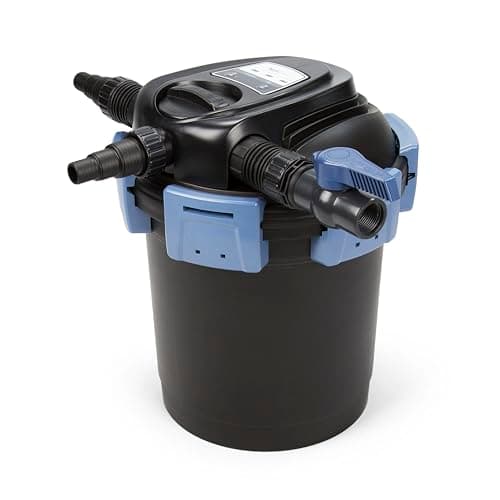

The Aquascape UltraKlean 2000 is the editorial pick to build a backyard koi pond system around because it collapses three jobs — mechanical filtration, biological filtration, and UV clarification — into one sealed canister that services in minutes. The pressurized design is the underrated part. Because the canister runs sealed under pump pressure, it can sit below the waterline or be buried to the lid behind a rock, then push clean water uphill to a waterfall. Open gravity filters cannot do that; they have to sit at the pond's highest point.

The honest trade-off is the gallon rating. Aquascape rates the UltraKlean 2000 for ponds up to 2,000 gallons at 2,700 GPH, but that figure assumes light stocking. Koi are heavy waste producers, so the realistic working number is roughly a 700 to 1,000 gallon koi filter. That is not a defect — it is how every pond filter on the market is rated, and it is why an owner review surfaced through reseller listings reports the UltraKlean 2000 clearing a 720-gallon koi pond within two days. Size to the koi-load number, not the box number, and the filter has headroom rather than being maxed out.

The 14-watt UV clarifier is integrated rather than bolted on, which matters for green water. The UV-C lamp treats single-celled algae as it flows through, and an electronic bulb-saver extends lamp life. It is a clarifier, not a sterilizer sized for parasite control, so treat it as an algae tool. The bulb is a yearly consumable — output fades long before the lamp stops glowing, so replace it each spring before summer algae pressure peaks.

Servicing is where the UltraKlean earns its rank. A twist-to-clean valve back-washes the media in under five minutes without opening the canister, and a cleaning-indicator light tells you when flow has dropped enough to warrant it. The catch is that you have to actually do it on schedule; skipping backwash chokes flow and starves the biological media. One more limit worth stating plainly: this is a filter, not a complete system. It needs a pump feeding it, sold separately, which is why the Cascade below pairs naturally with it on a larger pond.

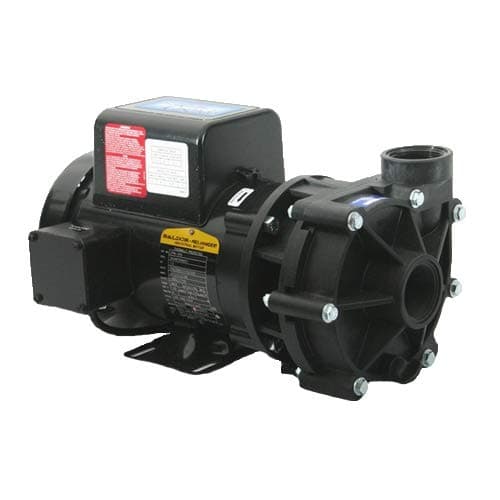

The PerformancePro Cascade is the flow engine for a large koi pond — the pump you buy when a submersible can no longer move enough water to run a pressure filter and a waterfall at the same time. Rated at 4,404 GPH at 10 feet of head with 22 feet of maximum head, the Cascade pump has the pressure to lift water through a filter, up a stream, and over a spillway without collapsing to a trickle at the top.

The design choice that defines it is low RPM. Turning just 1,725 RPM, the 1/4 HP motor runs quiet and cool, which is what koi-specialty retailers like Mystic Koi and RNR Koi mean when they call it a continuous-duty pump. High-speed submersibles hit similar flow numbers but spin fast, run hot, and wear bearings quickly. The Cascade 1/4 HP trades a bigger, slower motor for longevity and a roughly 330-watt draw — meaningful on a pump that runs around the clock all season, since running cost, not sticker price, is where a pond pump spends your money.

Here is the honest trade-off, and it is a real one: this is an external pump, not a drop-in submersible. It has to be plumbed with 1.5-inch fittings, primed, and sited in a dry, sheltered spot beside or above the pond. That is a materially bigger install job than dropping a submersible in the water, and the 230V high-voltage option should be wired by a licensed electrician. It is also the priciest item here and genuine overkill for ponds under about 1,000 gallons.

One more limit to state plainly: the Cascade pump moves water, it does not clean it. It needs a filter and, ideally, a UV clarifier downstream — pair it with the UltraKlean 2000 on a mid-size pond, or with a larger gravity filter plus the OASE Vitronic 36 on a big one. As a flow engine it is excellent; as a standalone purchase it is only half a system.

The OASE Vitronic 36 is the UV clarifier to add when your koi pond turns green and the filter alone will not clear it. At 36 watts UVC it is a high-output lamp — enough dose to disrupt suspended single-celled algae across a medium-to-large pond at up to 1,585 GPH of flow. Green water is a bloom of free-floating algae, and UV is the tool built for it: the light hits the cells as they pass and stops them reproducing, so the bloom dies back over days rather than being physically strained out.

The number that matters is the heavy-koi rating, not the headline. OASE rates the Vitronic 36 up to 10,000 gallons with no fish, but that fishless figure is marketing math. Under a real koi load the honest working number is about 2,500 gallons, with roughly 5,000 for a lightly-stocked pond. Size to the 2,500-gallon figure for a stocked koi pond and the Vitronic 36W has the dose to keep water clear; size to the 10,000-gallon number and you will be disappointed.

Installation is the easy part and a genuine strength. The Vitronic accepts 1, 1.25, and 1.5-inch hose, so it drops inline on most existing pump-and-filter plumbing, and the sealed housing is rated to about 7.25 psi with a 15-foot cord to reach a GFCI outlet. It is designed to bolt directly onto the OASE BioSmart gravity filter, and OASE's own documentation shows it only qualifies for the Clear Water Guarantee when paired with that filter.

That pairing detail is the honest trade-off. The Vitronic is a clarifier only — it kills suspended algae and passing pathogens but does no mechanical or biological filtration by itself. Bought to sit on a matching BioSmart it is excellent value; bought standalone it simply adds a UV stage to whatever filter you already run. Like any UV lamp it is a yearly consumable, and the quartz sleeve needs periodic wiping to stay effective.

The TetraPond FK5 is the honest small-pond starter — the kit for a preformed pond, a container water garden, or a light water feature, not for a stocked koi pond. It bundles a 325 GPH submersible pump, a submersible flat-box filter, and three fountain heads into one plug-and-play package. The pump draws just 22 watts and drops straight into the water with a 12-foot cord, so there is no plumbing, no priming, and no external siting to worry about. For a first pond that is a real advantage.

The flat-box filter holds coarse and fine foam pads for basic mechanical and biological filtration, and the three fountain patterns plus a diverter add surface movement that helps oxygenate the water. On a small, lightly-stocked pond the Tetra kit does everything asked of it, and at its price it is the lowest-friction way to get water moving and filtered.

The honest trade-off is stocking, and it is the whole story here. Retailer listings rate the FK5 for ponds up to 250 gallons — a minority stretch it to 500 for a lightly-stocked feature — which is small-pond territory. Koi are heavy waste producers that quickly overwhelm a 22-watt pump and a foam-pad flat box; the pads clog fast once fish waste ramps up and need frequent rinsing. There is also no UV clarifier, so green-water algae is not addressed at all.

Where the TetraPond FK5 fits a koi keeper is as a secondary piece, not the primary filter. It works as a quarantine-tub or holding-pond filter, as supplemental surface aeration on a larger pond during July heat, or as the whole system for a small preformed starter pond before you scale up. Just do not ask it to carry a real koi load — koi also dislike heavy fountain spray directly overhead, and the spray reduces effective pumping head. As a starter kit it earns its place; as a koi filter it is undersized by design.
